Home > Product > LED J-Box Low Profile Square

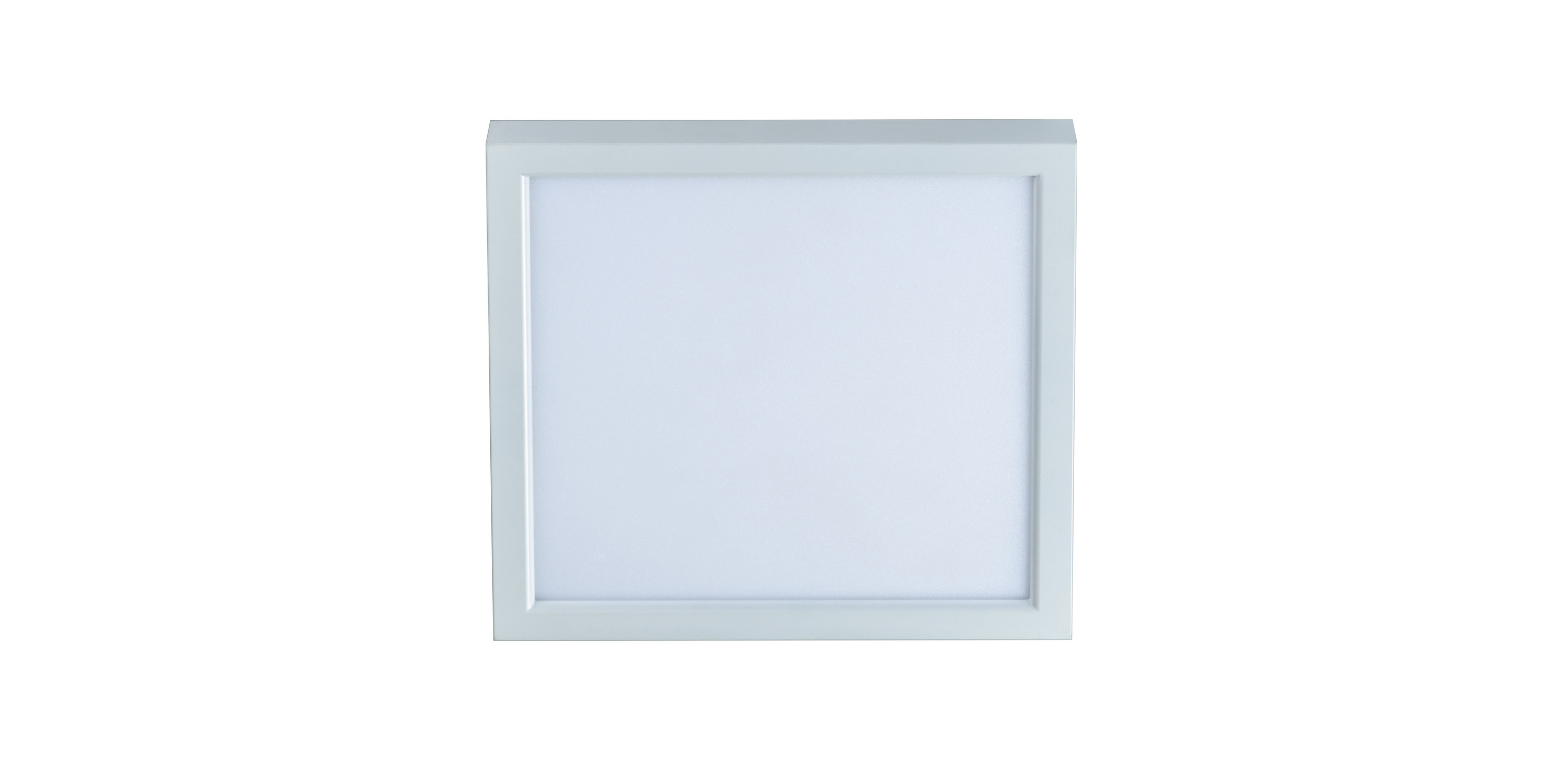

LED J-Box Low Profile Square

4330 Series

Download the photo metric sheet for this product here.
Download the specification sheet for this product here.
Download the IES sheet for this product here.
Specifications
  • LED surface mount panel light with
    integrated driver on PC board. Designed for use in most 3-0 (3”) or 4-0 (4”)” J-Box applications.
  • ENERGY STAR
  • Mounting bracket accommodates 3-0 (3”) or 4-0 (4”)” J-Box applications.
  • 120V LED module with integrated IC chip imbedded on the PC board.
  • ETL damp Location Listed
  • 10-100% dimmable driver. Driver is compatible with 120V electronic low/line-voltage TRIAC dimmers
  • Finishes: White (WH), Nickel (BN), or Bronze (OB)
  • Recommended max fixture load is 30 fixtures per 600W dimmer switch

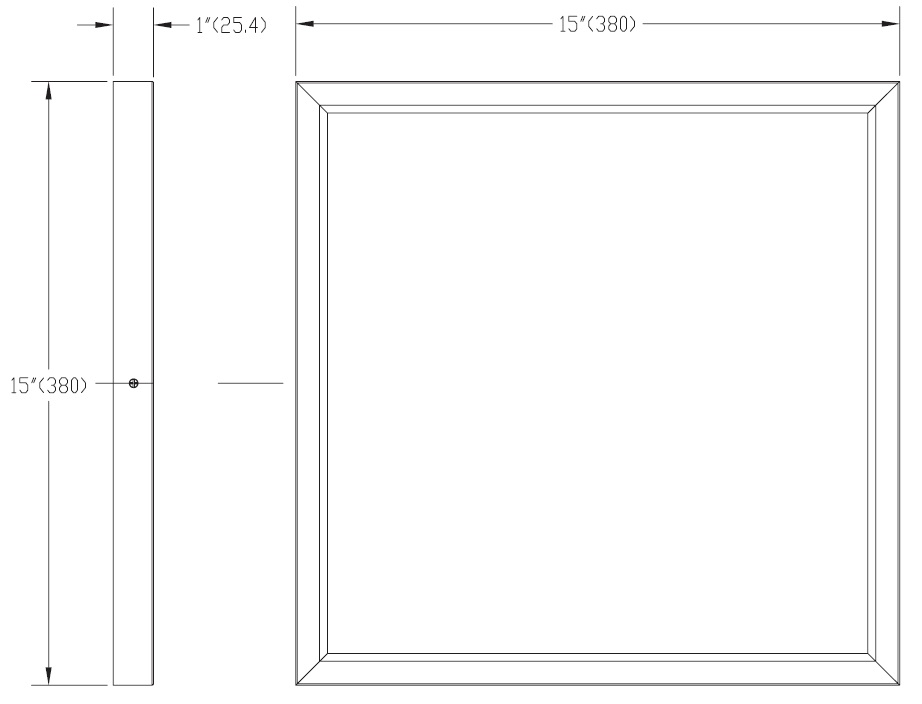

  • DIMS: 15 x 15 x 1-1/4″
  • 50,000 hours, 5 Year Limited Warranty
  • Catalog#:
    4330WH/BN/OB

    • Wattage: 30
    • Lumens: 2100
    • CCT: 3000
    • Input Voltage: 120V
    • Dimming: Triac 120V
    • CRI: 91
  • Catalog#:
    4330WH/BN/OB-4K

    • Wattage: 30
    • Lumens: 2100
    • CCT: 4000
    • Input Voltage: 120V
    • Dimming: Triac 120V
    • CRI: 91
