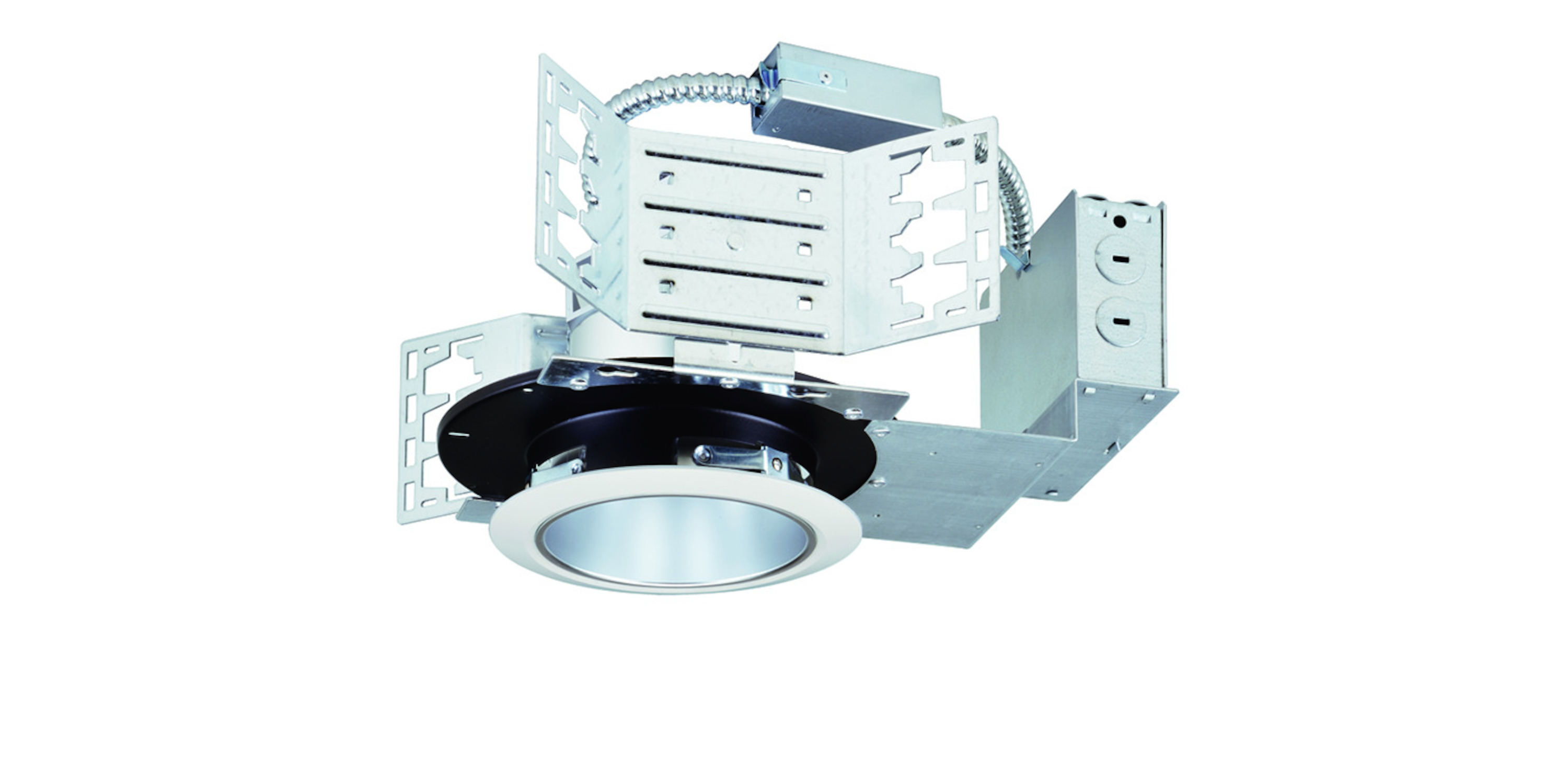

LED 4” Commercial Recessed Architectural Downlight | 14W & 23W
8121H Series



Specifications
- Family: 8121H
- Description
• Commercial grade LED Down light. Designed for use in most existing 4-1/2”- 5” aperture architectural incandescent, fluorescent, and metal halide housings. - Design Features
• Mounting plate: 20 gauge CRS mounting ring. 1-5/8” deep collar may be used in different thickness levels.
• LED Module is an aluminum extruded heat sink designed to facilitate heat dissipation to reduce LED junction temperature for maintaining constant light and color output
• Pre-Installed thermal detector.
• Lamp life of 50,000 hours
• Easy-quick® connector case - Trims: 8590HZ, 8586WH, 8587WH, 8588WH & 8589WH
- Warranty
• 5 year warranty - Compliance
• ENERGY STAR® Certified Luminaire for 3000K & 4000K Only
• cCSAus Certified - Optional Features• Emergency back-up
- Suitable for use in wet locations when used with 8587WH
