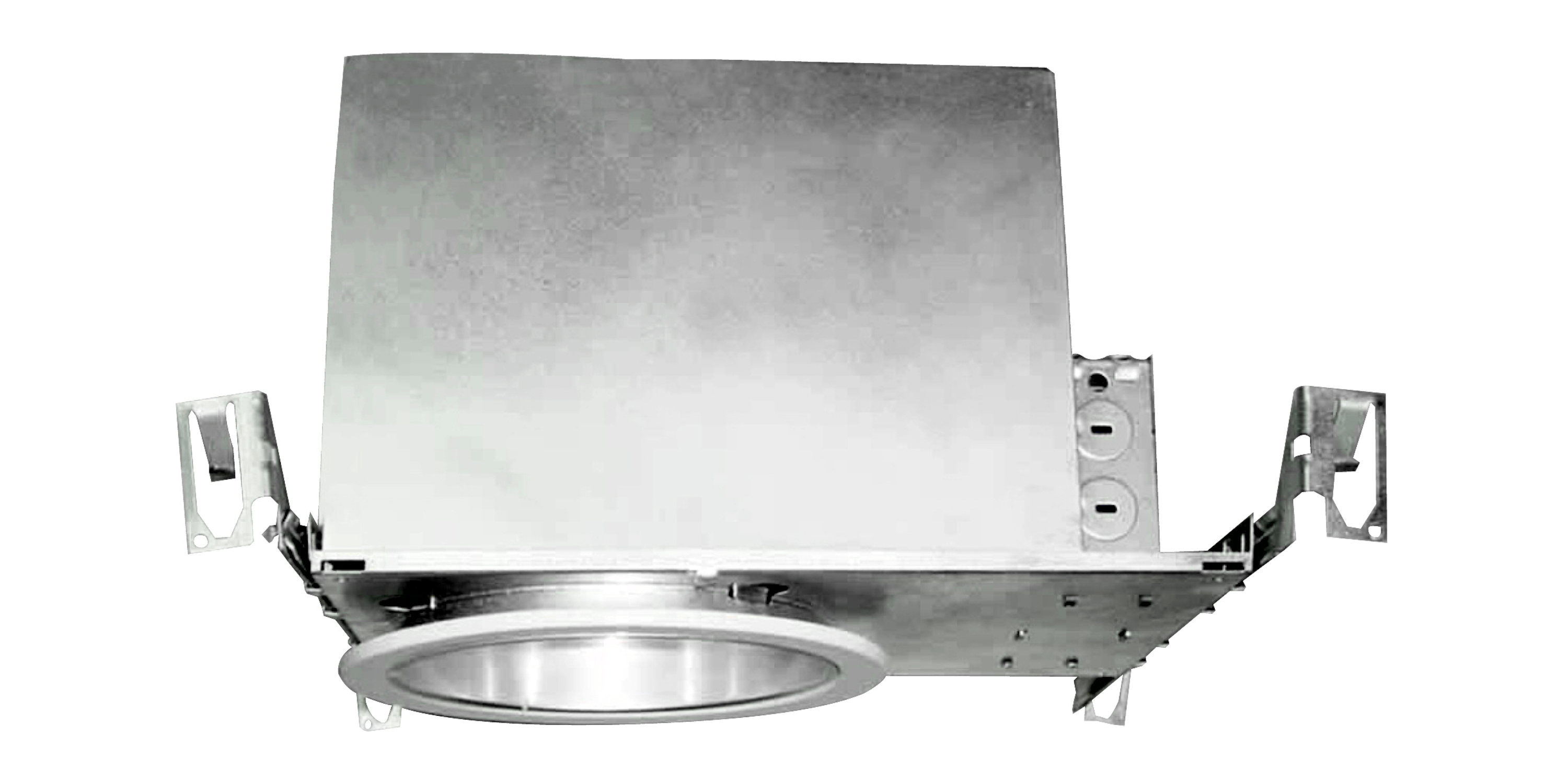

CLOSEOUT – 6” IC Horizontal Compact Fluorescent Housing

• Part #:
  • 8134HIC-Exx (Non dimmable)
  • 8134HIC-Dxx (Dimmable)
• EM option: 8134HIC-EM (Emergency option)
• Description: 6” IC Horizontal Compact Fluorescent Housing
• Design Features
  • Thermal Protection: Protected against misuse of insulation and improper wiring
  • Bar hangers: Pre installed allowing for position at any point w/in a 24” joist span. Can be turned 90⁰ on plaster frame, & to fit T-bar spine w/out additional clamps for use in drop ceilings.
  • Nails: Pre installed captive nails on bar hangers
  • Wall: Double wall construction
  • IC Rating: IC rate for direct contact with noncellulose insulation
  • J Box: Listed for feed through wiring (4 in-4 out) and five ½” knockouts & four non metallic cable knockouts w/ strain clamps
  • Connectors: 3-port quick connectors
  • Lamp: Horizontally mounted DTT (Double twin tubes or TT
  • Wattage: 2x13W, 2x18W, & 2x26W
  • Ballast: HPF (High power factor) electronic for 4-pin type
  • Voltage: 120/277V
•   Listing
  • ETL/UL: cULus for damp location

*Closeout model/finish
Quantities Limited
