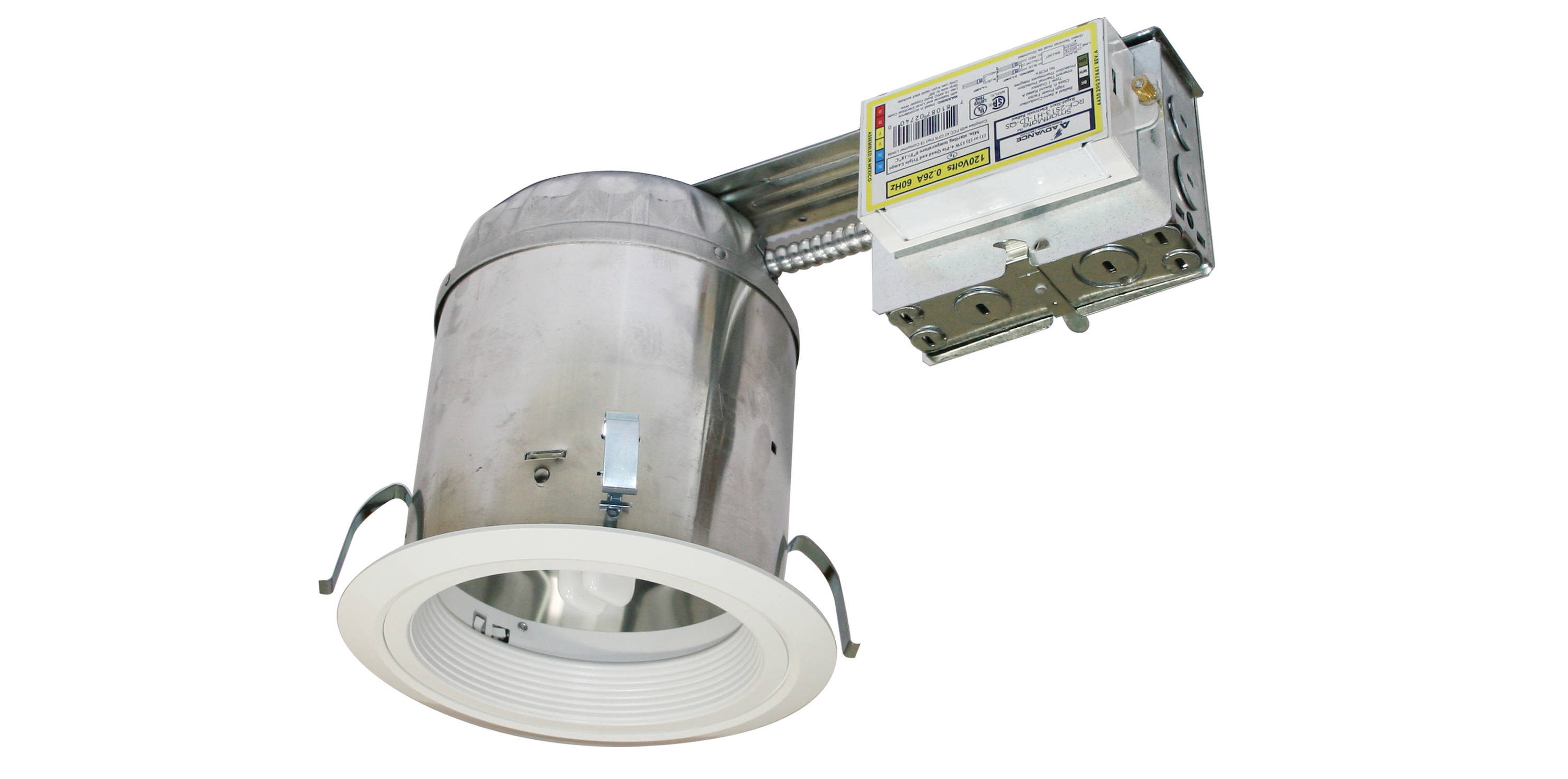

CLOSEOUT – 6” IC Airtight Remodel Fluorescent Housing
8196HRA Series



Specifications
- Part #: 8196HRA
- Description: 6” IC Airtight Remodel Fluorescent Housing
- Design Features
- Thermal Protection: Protected against misuse of insulation and improper wiring
- Fit: Adjusts to fit up to 1” ceiling thickness. 7-13/16” height allows use in 2” x 8” joist construction.
- IC Rating: IC rated for direct contact w/ non cellulose type insulation
- J Box: Listed for feed through wiring (4 in-4 out) and seven ½” knockouts & four non metallic cable knockouts w/ strain clamps
- Connectors: 3-port quick connectors
- Ballast: Electronic HPF High Power Factor for 4 pin lamp
- Lamp: Vertically mounted G24/Gx24
- Wattage 1x13W, 1x18W & 26W
- Voltage: 120V
- Warranty
- 1 year limited warranty
- Listing
- ETL/UL: cULus for damp location
- Meets Washington’s State energy code for restricted airflow
*Closeout model/finish
Quantities Limited
