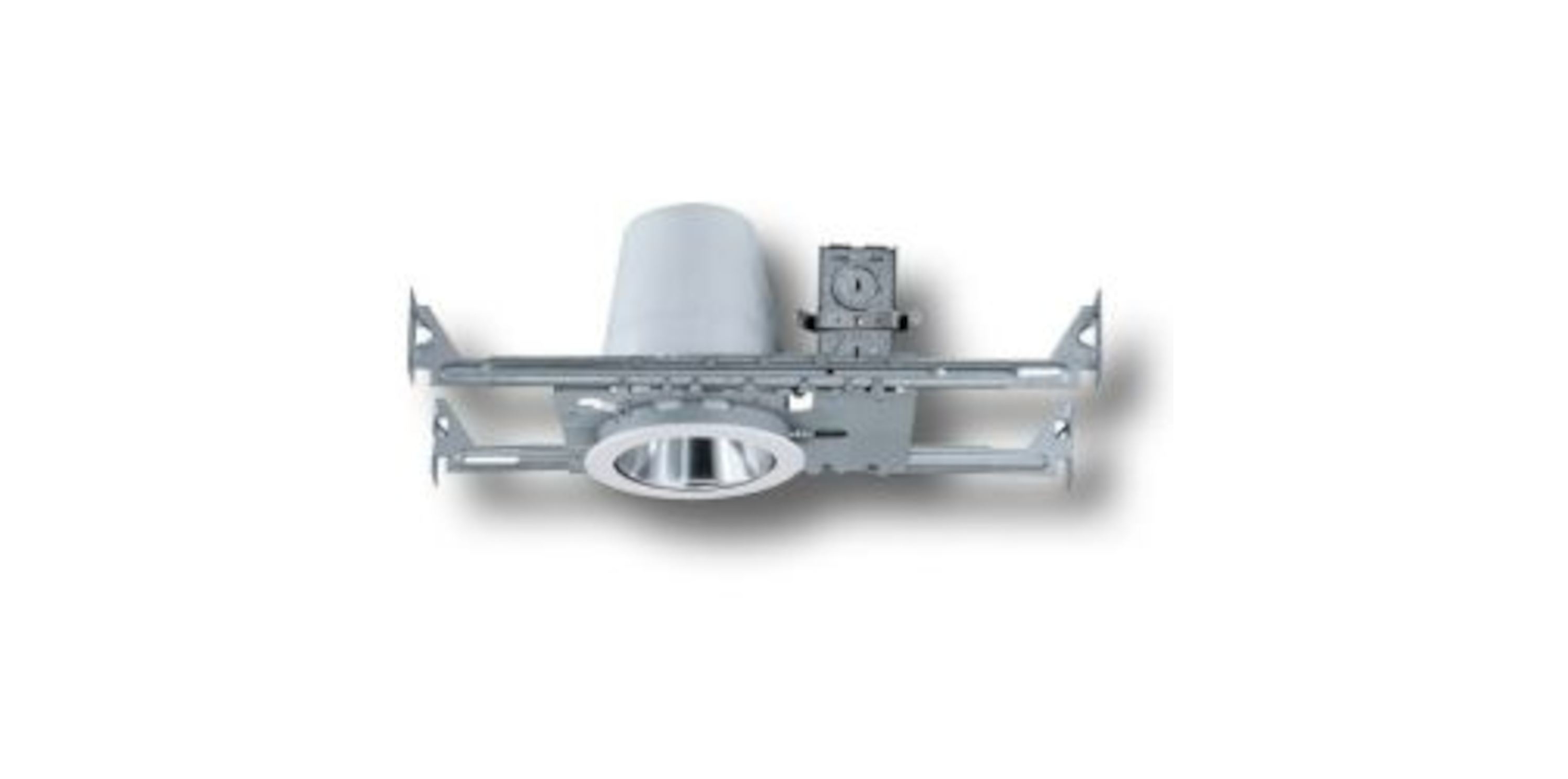

4” Airtight Frame-In
8201HA Series
(Acrobat Reader Required)
Specifications
- Category #: 8201HA
- Category #: 8201
- Family: Recessed
- Description: 4” Airtight Frame-In
- Design Features
- Connectors: 3-port quick connectors pre-installed in all J Boxes
- Construction: New construction
- Thermal Protection: Protected against misuse of insulation and improper wiring
- Non-IC
- J Box: Listed for feed through wiring (4 in-4 out) and seven ½” knockouts
- Bar hangers: Pre-installed allowing for position at any point w/in a 24” joist span. Can be turned 90⁰ on plaster frame, & to fit T-bar spine w/out additional clamps for use in drop ceilings.
- Nails: Pre installed captive nails on bar hangers
- Wattage: 50W Max
- Voltage: 120V-60Hz
- Available Modules/Trim Finishes:
- 8756, 8763, 8761, 8765, 8768, 8722, 8767, 8769, 8770, 8771, 8773, 8701, 8702, 8703, 8704 & 8705
- Warranty
- 1 year limited warranty
- Material
- Frame: Steel
- Listing
- ETL/UL: cULus certified
- Meets Washington’s State energy code for restricted airflow
- Wet Location Trim Options
- 8702FS
- 8705AL
In an effort to promote energy efficiency and recognizing the importance of energy conservation, RP Lighting has developed multiple products in each of our lighting and ceiling fan categories that are Energy Star qualified.
