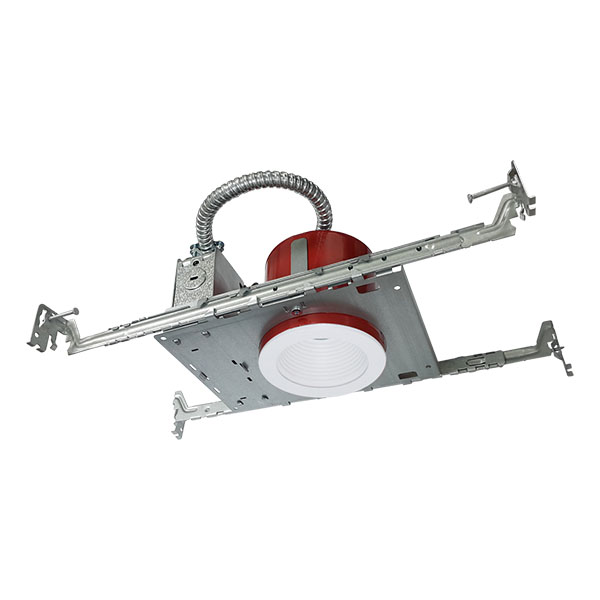

4” LED 2-Hour Fire Rated Airtight New Construction


-
- Family: 8216FR-JB
- Description
• 4” LED 2-Hour Fire Rated Airtight New Construction - Design Features
- 120V available
- 277V special order only
- 16 gauge fire resistant galvanized steel
- IC Rated for direct contact with insulation
- 4” height allows use in 2” x 6” joist construction
- Adjusts to accommodate up to 1” ceiling thickness
- J-box act as housing and barrier for fire flammability
- J-Box: Listed for through-branch circuit wiring (4in – 4out) and seven 1/2” knockouts
- Pre-installed bar hangers allow the housing to be positioned at any point within 24” joist span
- Nails: Pre installed captive nails on bar hangers
- Available LED Modules/Trim Finishes
- 8763WH, OB, BK, BN, CL
- 8769WH, OB, BK, BA
- 8771WH, OB, BN
- 8770CL
- Dimensions (L x W x H)
- 4-5/16” x 4” x 7-9/16”
- Warranty
- 5 year warranty
- Compliance
- LED Engine/ Trim assembly: CSAus listedH
- Housing : UL 1598 downlight
- 2hr fire rated per UL514A
- 5 year limited warranty
