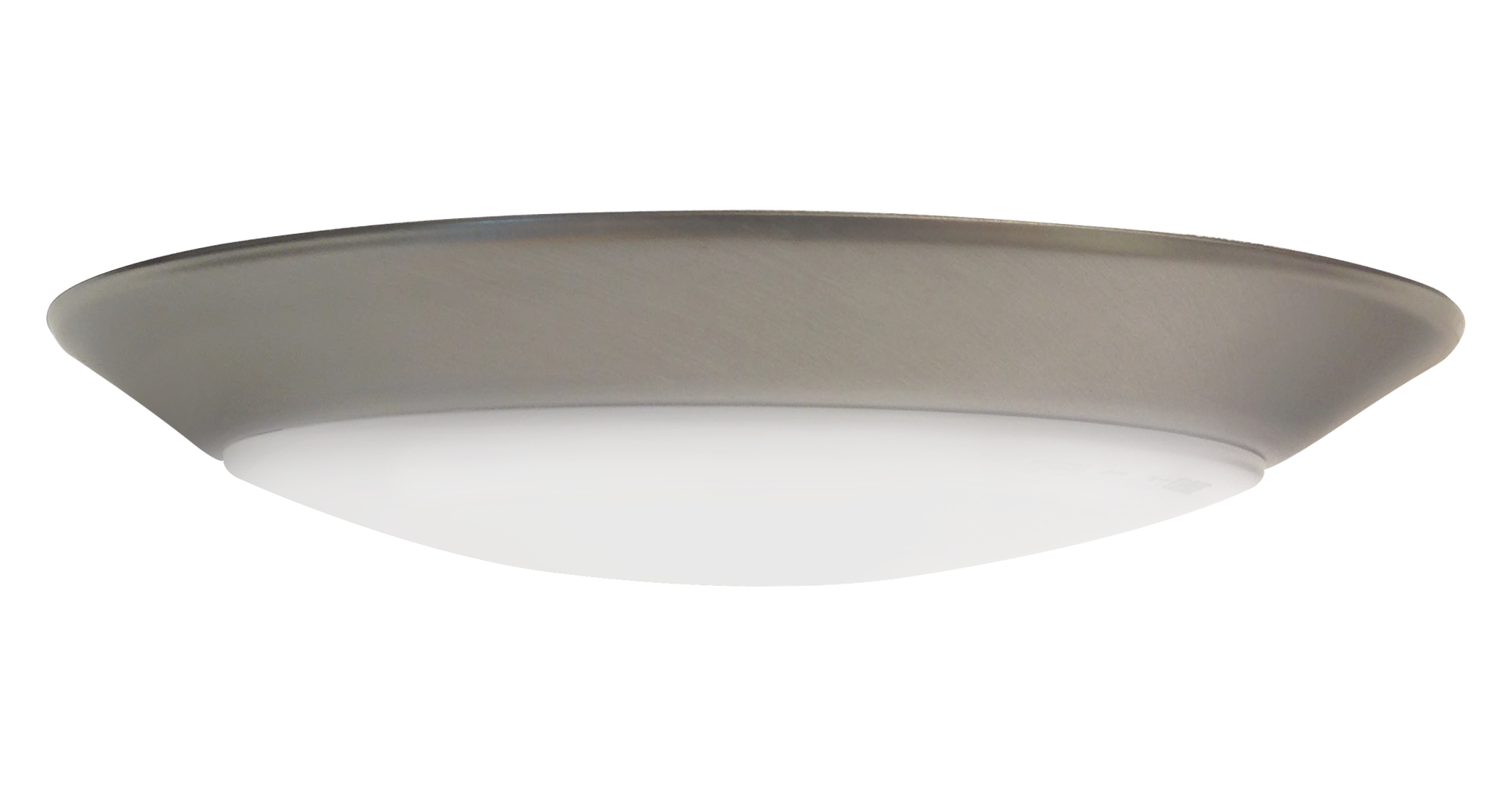

4” Low-Profile Disk Light

8756-R Series

Specifications

8756-R
4” Low-Profile Disk Light
LED recessed retro fit disk light with integrated driver on PC board. Designed for use in most 3-0 (3”) or 4-0 (4”)” J-Box.
120V LED module with integrated IC chip imbedded on the PC board.
WET Location Listed
10-100% dimmable driver. Driver is compatible with 120V electronic low/line-voltage TRIAC dimmers
Recommended max fixture load is 30 fixtures per 600W dimmer switch
Finishes: White (WH), Nickel (BN), Oil Rubbed Bronze (OB) or Black (BK)
DIA: 5.9” H: 1.25”
Energy Star Listed
JA8 and State of California Title 24 Compliant
cCSAus for use in wet locations
50,000 hours, 5 Year Limited Warranty
Wattage: 12W
Lumens: 730lms
CCT: 2700K, 3000K or 4000K
Input Voltage: 120V
Dimming: Triac 120V
CRI: 90
Compatible Housing: 8201HA, 8201HRA & 8202HA
