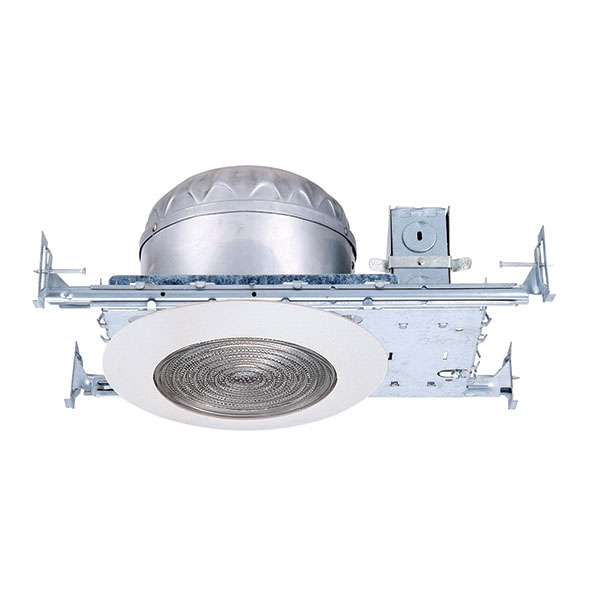

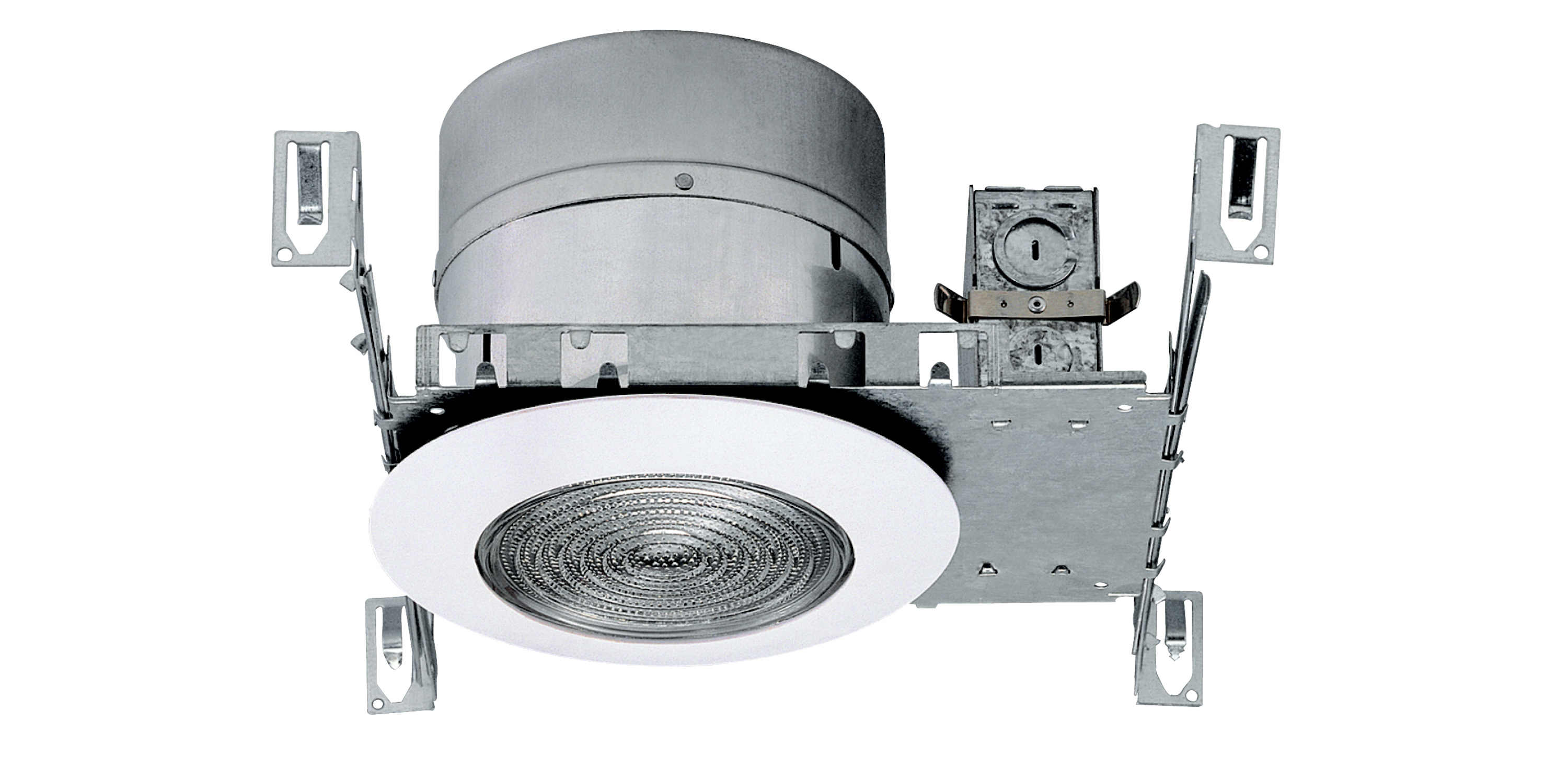

6” IC Airtight Shallow Frame-In
8104HICA
(Acrobat Reader Required)
Specifications
- Part #: 8104HICA
- Category #: 8104
- Family: Recessed
- Product Category: Recessed Down Light
- Description:6” IC Airtight Shallow Frame-In
- Design Features
- Connectors: 3-port quick connectors pre installed in all J Boxes
- Construction: New construction
- Thermal Protection: Protected against misuse of insulation and improper wiring
- IC Rating: IC rated for direct contact with non-cellulose type insulation
- J Box: Listed for feed through wiring (4 in-4 out) and seven ½” knockouts
- Bar hangers: Pre installed allowing for position at any point w/in a 24” joist span. Can be turned 90⁰ on plaster frame, & to fit T-bar spine w/out additional clamps for use in drop ceilings.
- Nails Pre installed captive nails on bar hangers
- Wattage: Up to 75W
- Voltage: 120V-60Hz
- Available Modules/Trim Finishes:
- 8523, 8538, 8556, 8562, 8563, 8564, 8565, 8566, 8567, 8568, 8569, 8502, 8504, 8505, 8509, & 8511
- Warranty
- 1 year limited warranty
- Listing
- ETL/UL: cULus certified for damp location
- Meets Washington’s State energy code for restricted airflow
In an effort to promote energy efficiency and recognizing the importance of energy conservation, RP Lighting has developed multiple products in each of our lighting and ceiling fan categories that are Energy Star qualified.
