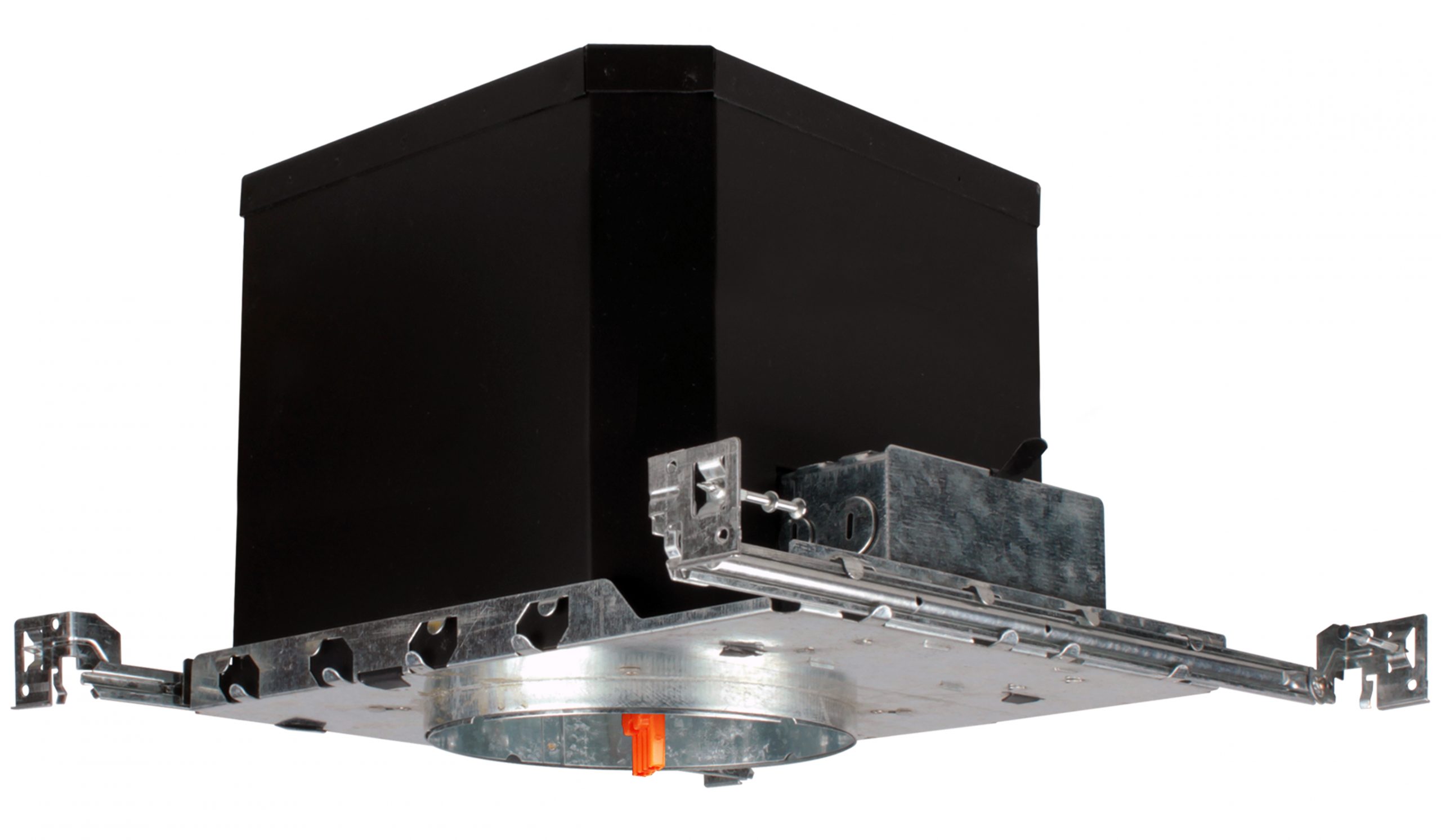

6” LED 2-Hour Fire Rated IC Airtight New Construction
8199HICA-FR


Specifications
-
- Family: 8199HICA-FR
- Description
• 6” LED 2-Hour Fire Rated IC Airtight New Construction - Design Features
- 120V/277V, 60HZ
- Galvanized steel construction; housing interior is comprised of a flexible non-combustible insulation
- IC Rated for direct contact with insulation
- Adjusts to accommodate up to 1-1/2” ceiling thickness
- 2-hours fire rated
- Available LED Modules/Trim Finishes
- 8523WH, OB, BK, BN
- 8562WH, OB, BK, BN
- 8563WH, OB, BK, BN, CL
- 8568WH, OB, BK, CL

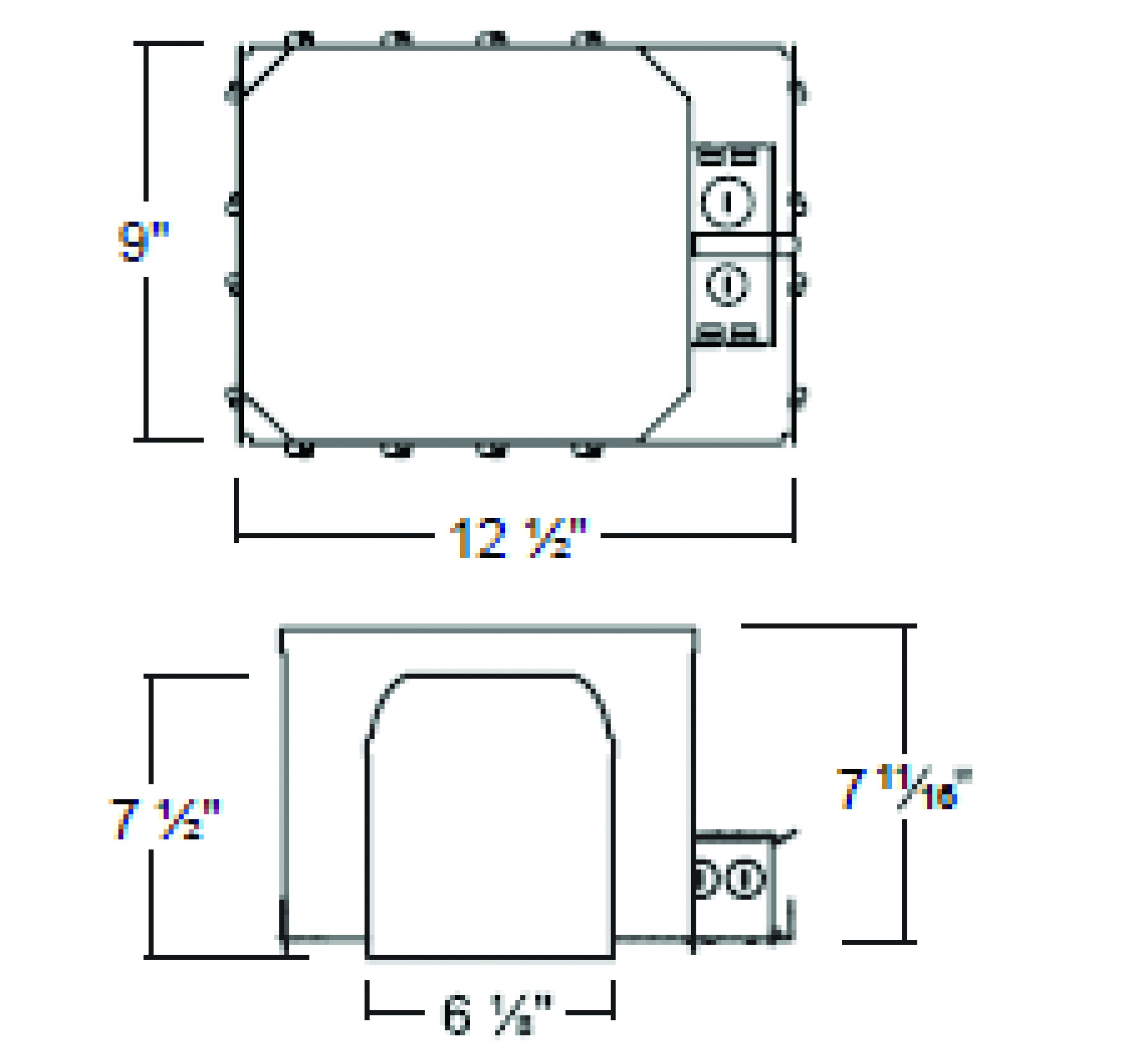

- Dimensions (L x W x H)
- 6-1/2” x 9” x 12-1/2”
- Aperture for can: 6 ⅛”
- Height of can: 7 ½”
- 6-1/2” x 9” x 12-1/2”
- Warranty
- 5 year limited warranty
- Compliance
- cULus Listed for Wet Location (with specified trims)]
- Certified under ASTM-E283 for Air tight construction
- 2 HOURS FIRE RATED UL Listed (UL1598 / UL263)
