LED J-Box Low Profile Disk

8556 Series

Specifications

SKU- 8556
Voltage: Available in 120V | 277V available by request only
Features:
- 8556, 80CRI:
  - Wattage: 15W
  - Lumens: 835lm
  - CRI: 80
- 8556, 90CRI:
  - Wattage: 15W
  - Lumens: 1000lm
  - CRI: 90
Triac dimmable down to 0%
Available in 2700K, 3000K, 4000K or 5000K
120V LED module with integrated IC chip imbedded on the PC board

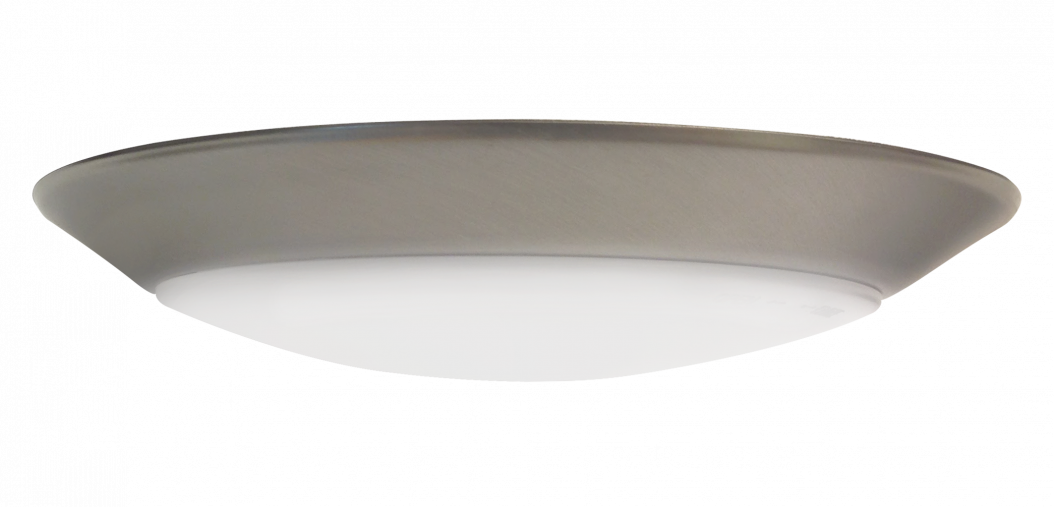

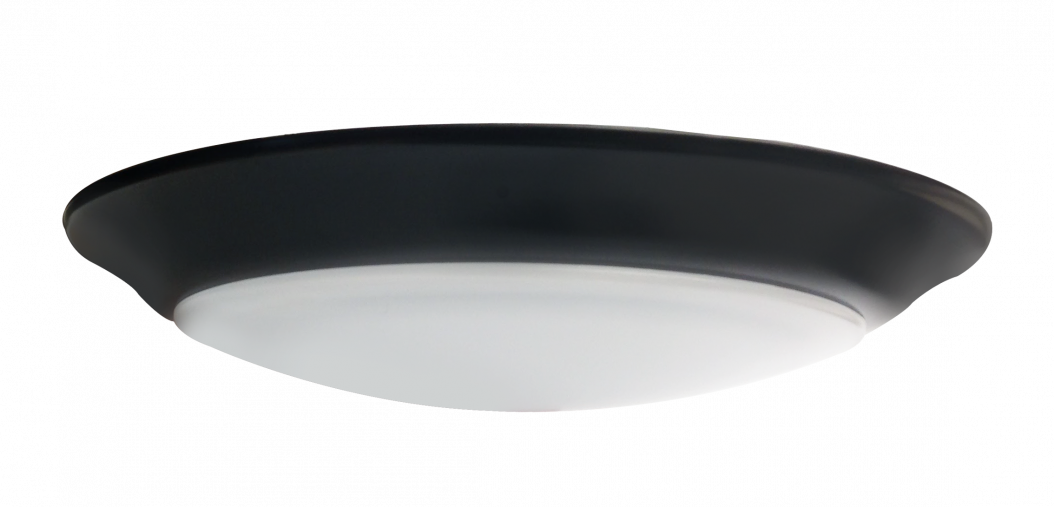

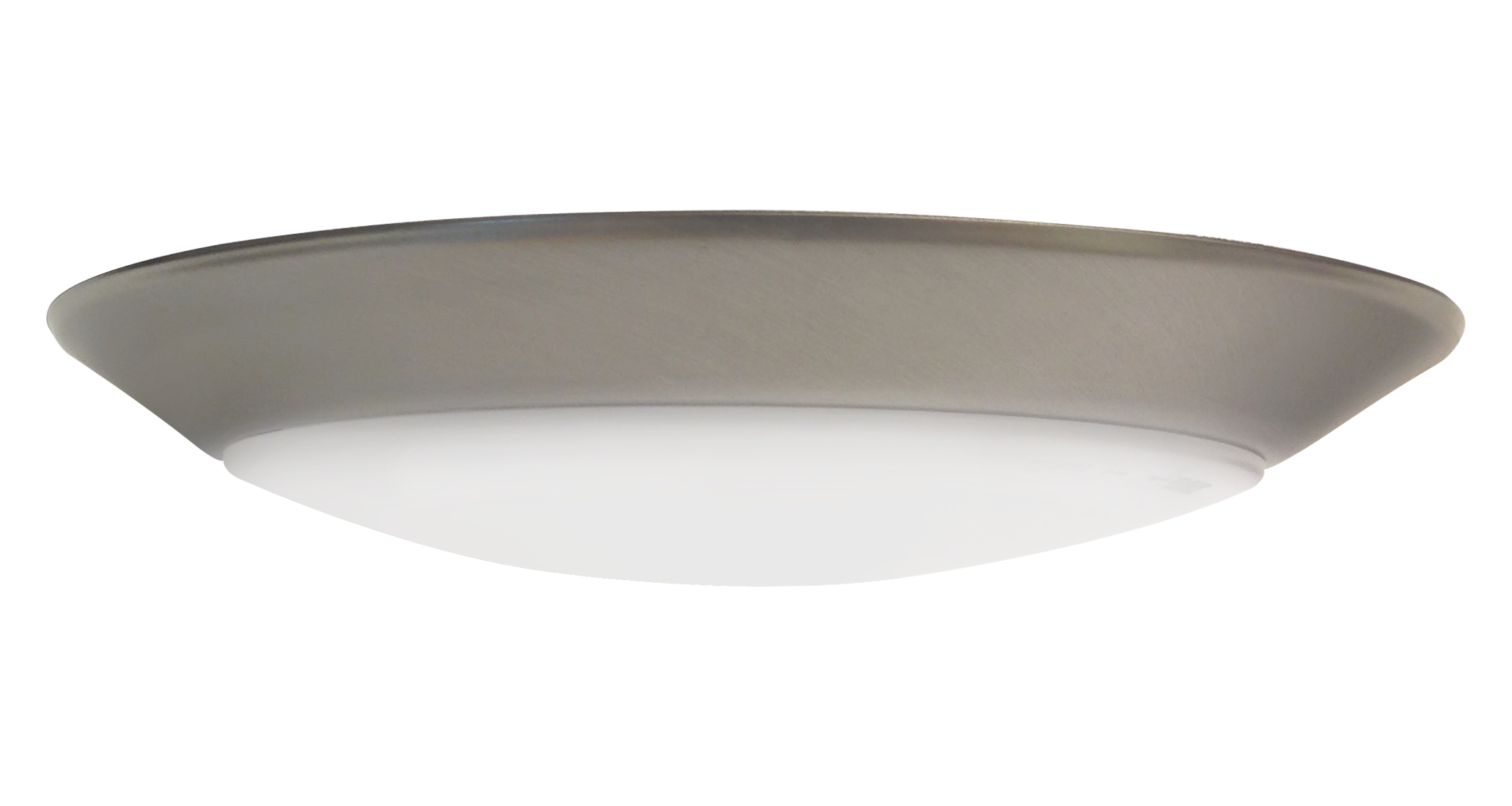

Finishes: White (WH), Nickel (BN) or Black (BK)
Recommended max fixture load is 30 fixtures per 600W dimmer switch
DIA: 7-3/8” H: 1-1/4”
LED surface mount or recessed retrofit disk light with integrated driver on PC board. Designed for use in most 3-0 (3”) or 4-0 (4”)” J-Box applications
Mounting bracket accommodates 3-0 (3”) or 4-0 (4”)” J-Box applications.
cCSAus for use in wet locations
Energy Star listed
JA8 and State of California Title 24 Compliant
5 year limited warranty
50,000 hours projected life
