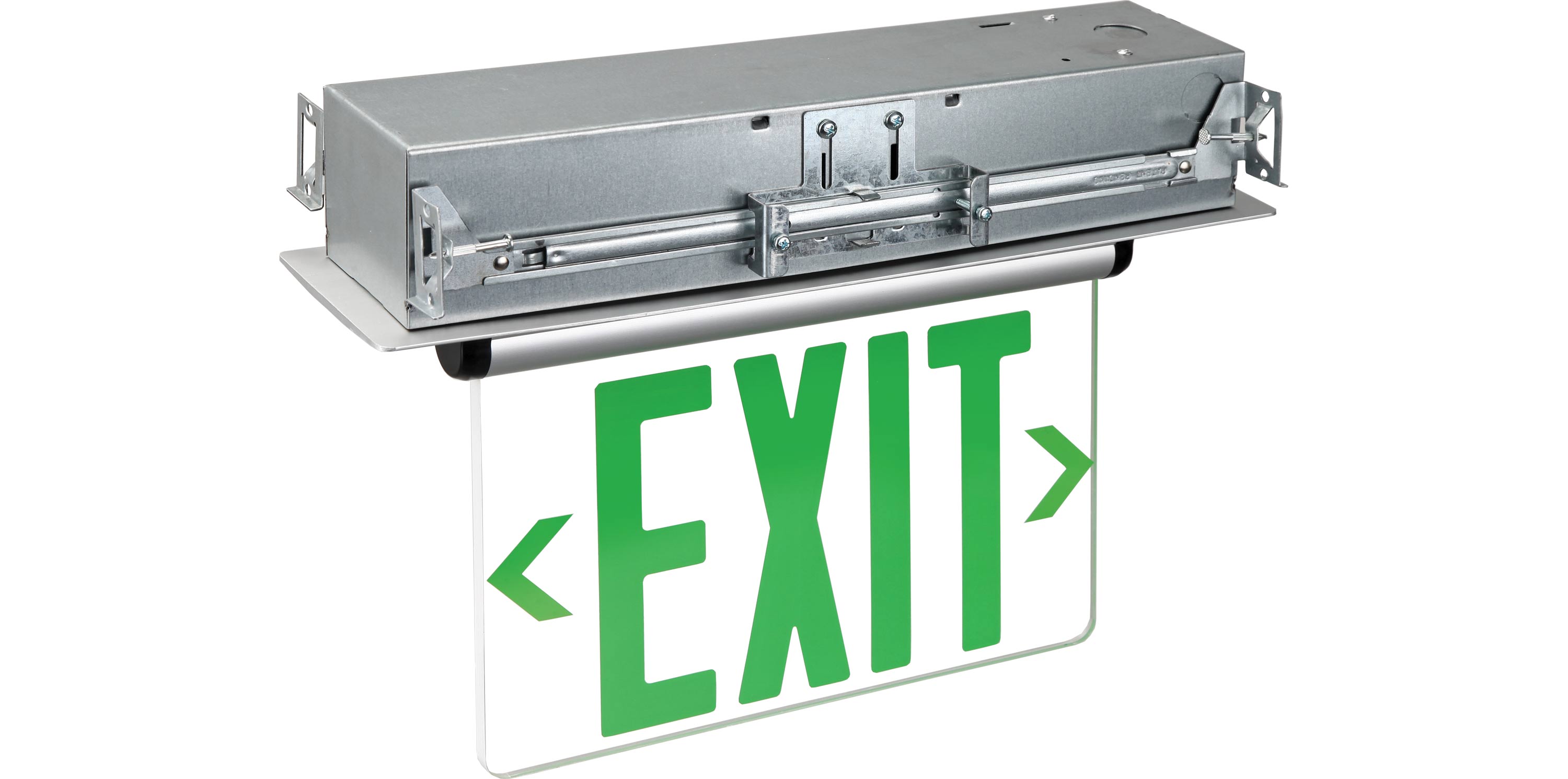

Recessed Edge-lit Exit – Single Face
RXL33 Series
Specifications
- Category #:
- RXL33GBA
- RXL33RBA
- RXL33RW
- RXL33GW
- Family: RXL33
- Product Category: Emergency Exits
- Description: Edge Lit Emergency Exit Single Face Recess Mount
- Finishes available:
- Green letter w/ Brushed Aluminum
- Red letter w/ Brushed Aluminum
- Green letter with white housing
- Red letter with white housing
- Design Features
- Mounting: Recessed mount
- Housing: Includes bar hanger allowing positioning within a 24” joist. Removable directional indicators
- Operating temp: 10⁰C to 40⁰C (50⁰F to 104⁰F)
- Input voltage: 120/277V
- Special Feature: Completely self-contained. Integral recharging system. Fully automatic operation. Momentary switch included. RT-5 adapter included.
- Lamp: LED w/ estimated life of 25 years
- Battery: Contains 4.8V Ni-cd rechargeable battery
- Protected from deep discharge. Up to 90 minutes of illumination from battery
- Warranty: 5 year limited warranty
- Listing
- ETL/UL: ETLus for damp location listed
- CEC Title 20 Compliant
In an effort to promote energy efficiency and recognizing the importance of energy conservation, RP Lighting has developed multiple products in each of our lighting and ceiling fan categories that are Energy Star qualified.
