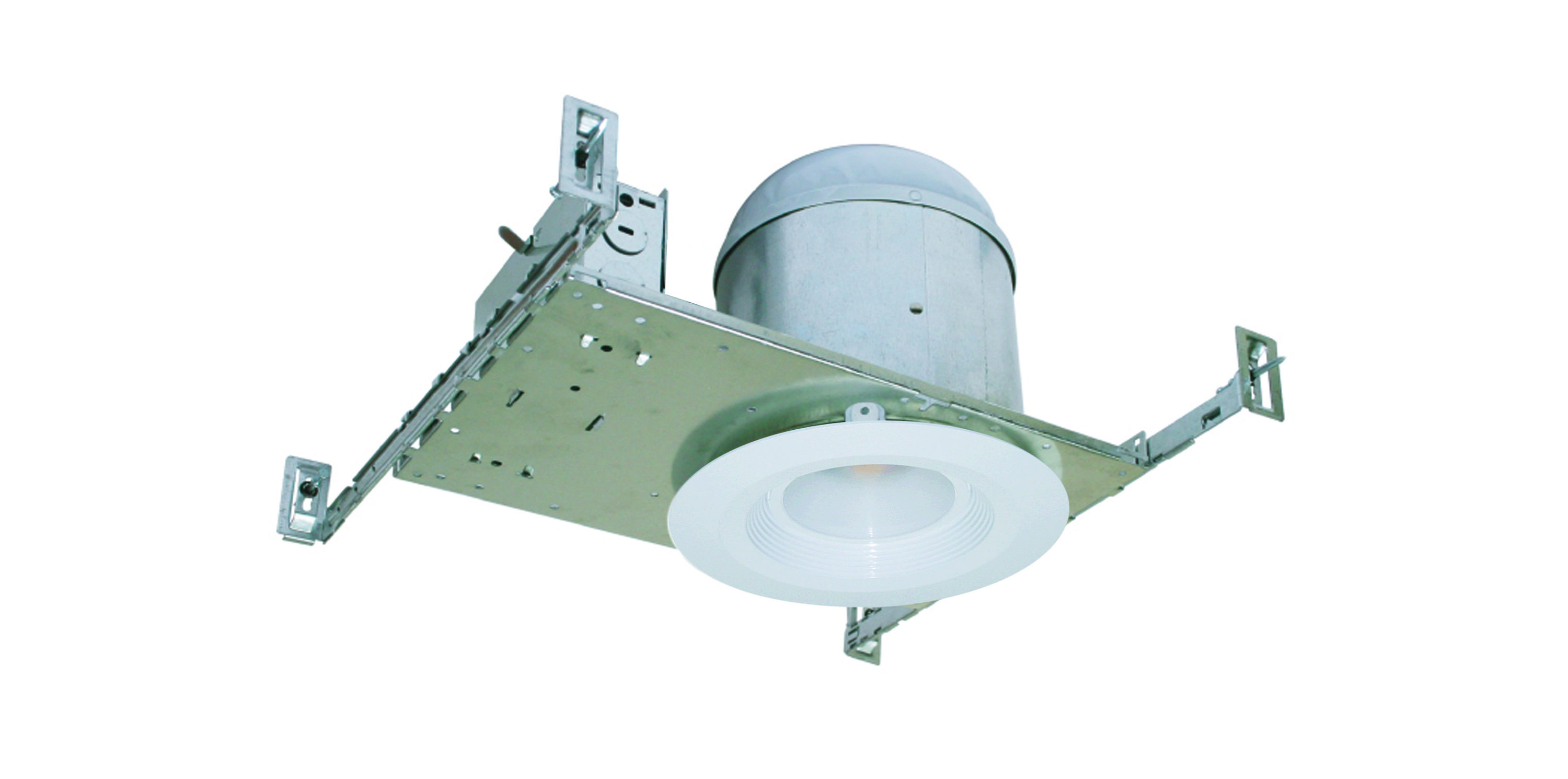

6″ LED IC Airtight Shallow Frame-In
8117HA Series
Specifications
- Item #: 8117HA
- Family: 8117
- Category: Recessed
- Description: 6″ LED IC Airtight Shallow Frame-In
- Design Features
- Connectors: 3 part quick connectors pre-installed in all J Boxes
- Construction: New construction
- Thermal Protection: Protected against misuse of insulation and improper wiring
- IC Rating: IC rated for direct contact with insulation
- J Box: Listed for feed through wiring. Five 1/2″ knockouts with true pry-out slots and four knockouts with Romex cable clamp. Ground wire provided.
- Bar hangers: Pre-installed allowing for position at any point w/in a 24” joist span. Can be turned 90⁰ on plaster frame, & to fit T-bar spine w/out additional clamps for use in drop ceilings.
- Nails: Pre installed captive nails on bar hangers
- Adjusts to accommodate 1″ ceiling thickness
- Voltage: 120V-277V Universal Voltage
120V with 120V trims | 277V with 277V trims - Suitable for use in damp locations, wet locations when used with 8563, 8523, and 8568 trims
- Available LED Modules/Trim Finishes
- 8523WH, BN, OB, BK
- 8562WH, BN, OB, BK
- 8563WH, BN, OB, BK, CL
- 8568WH, OB, BK, CL
- Options:
- -EM adds Emergency Backup
- Warranty
- 5 year limited warranty
- Material
- Frame: Steel
- Listing
- ETL/UL: cETLus certified
- Meets Washington’s State energy code for restricted airflow
- Energy Star listed
- 8117HA Installation Instructions
In an effort to promote energy efficiency and recognizing the importance of energy conservation, RP Lighting has developed multiple products in each of our lighting and ceiling fan categories that are Energy Star qualified.
