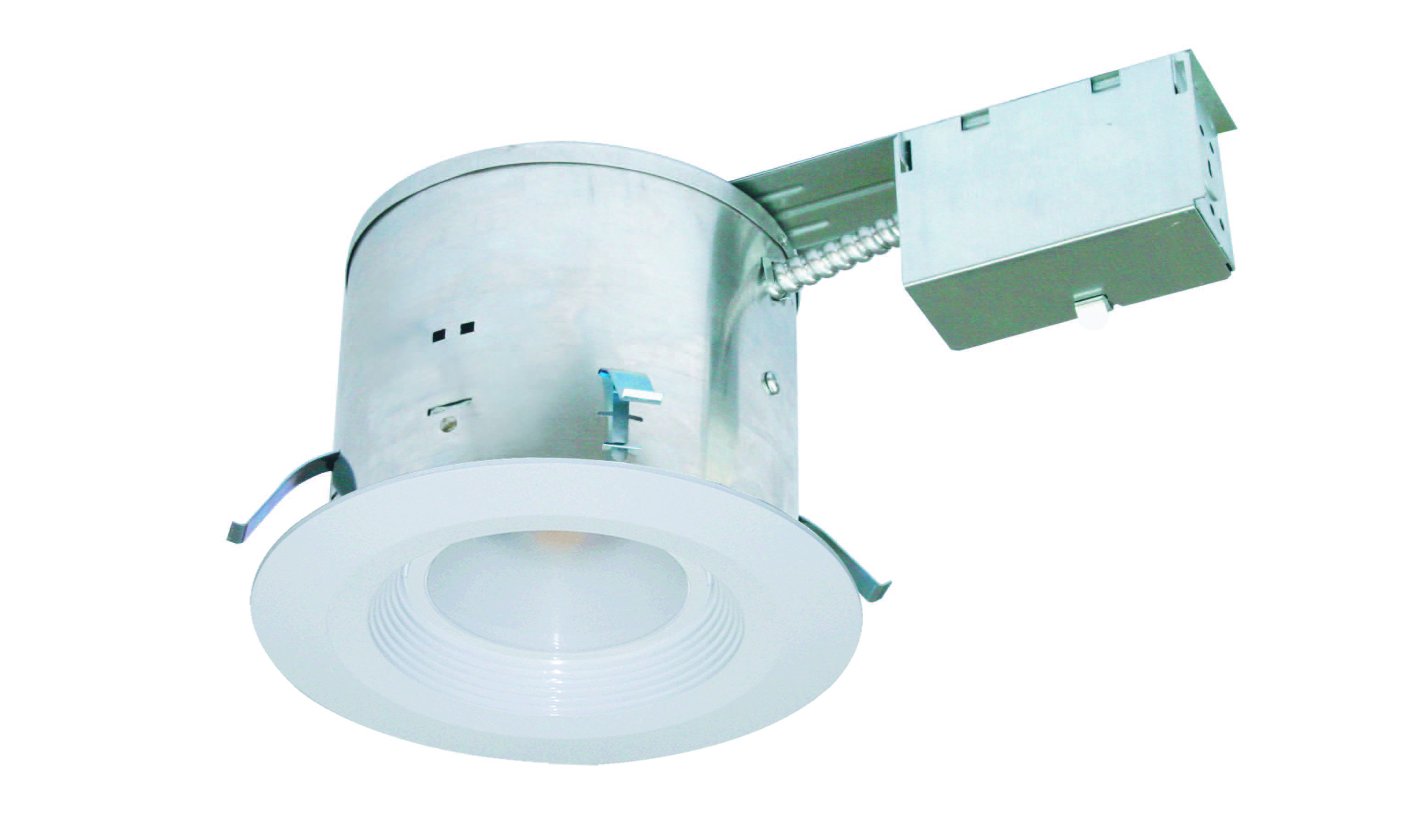

6” LED IC Airtight Shallow Remodel
8117HRA
Specifications
- Item #: 8117HRA
- Family: 8117
- Category: Recessed
- Description: 6” LED IC Airtight Shallow Remodel
- Design Features
- Construction: Remodel
- Thermal Protection: Protected against misuse of insulation and improper wiring
- IC Rating: IC rated for direct contact with insulation
- Listed for through branch circuit wiring and includes (5) 1/2” knockouts with true pry-out slots and (4) knockouts with Romex cable clamp
- Sturdy aluminum construction
- Nails: Pre installed captive nails on bar hangers
- Adjustable for ceiling thicknesses up to 1-1/4”
- Voltage: 120V-277V Universal Voltage
120V with 120V trims | 277V with 277V trims - Suitable for use in damp locations, wet locations when used with 8563, 8523 and 8568 trims
- Available LED Modules/Trim Finishes
- 8523WH, BN, OB, BK
- 8562WH, BN, OB, BK
- 8563WH, BN, OB, BK, CL
- 8568WH, OB, BK, CL
- Warranty
- 5 year limited warranty
- Material
- Frame: Aluminum
- Listing
- ETL/UL: cETLus certified
- Meets Washington’s State energy code for restricted airflow
- Energy Star listed



In an effort to promote energy efficiency and recognizing the importance of energy conservation, RP Lighting has developed multiple products in each of our lighting and ceiling fan categories that are Energy Star qualified.
