CLOSEOUT – 8” Vertical Compact Fluorescent Housing

• Part #:
  • 8154H-Exx (non dimmable)
  • 8154H-Dxx (dimmable)
• EM option: 8154H-EM (emergency)

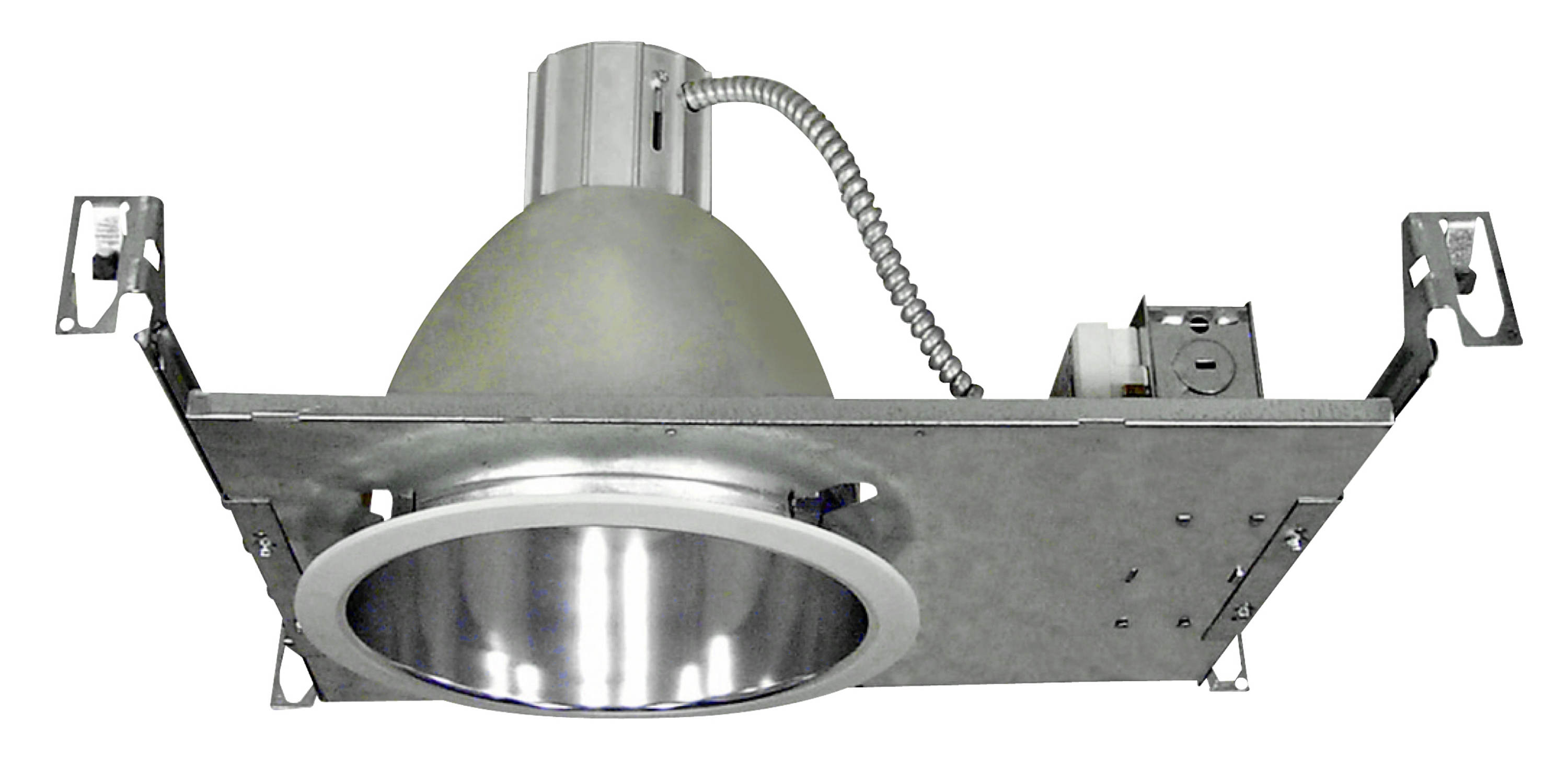

• Description: 8” Vertical Compact Fluorescent Housing
• Design Features
  • Thermal Protection: Protected against misuse of insulation and improper wiring
  • Bar hangers: Pre installed allowing for position at any point w/in a 24” joist span. Can be turned 90⁰ on plaster frame, & to fit T-bar spine w/out additional clamps for use in drop ceilings.
  • IC Rating: Non-IC
  • Nails: Pre installed captive nails on bar hangers
  • J Box: Listed for feed through wiring (4 in-4 out) and five ½” knockouts & four non metallic cable knockouts w/ strain clamps
  • Connectors: 3-port quick connectors
  • Lamp: Horizontally mounted DTT (Double twin tubes or TT
  • Wattage: 1x26W DTT, 1x32W TRT, 1x42W TRT vertically mounted
  • Ballast: HPF (High power factor) 4-pin type
  • Voltage: 120/277V

*Closeout model/finish
Quantities Limited
