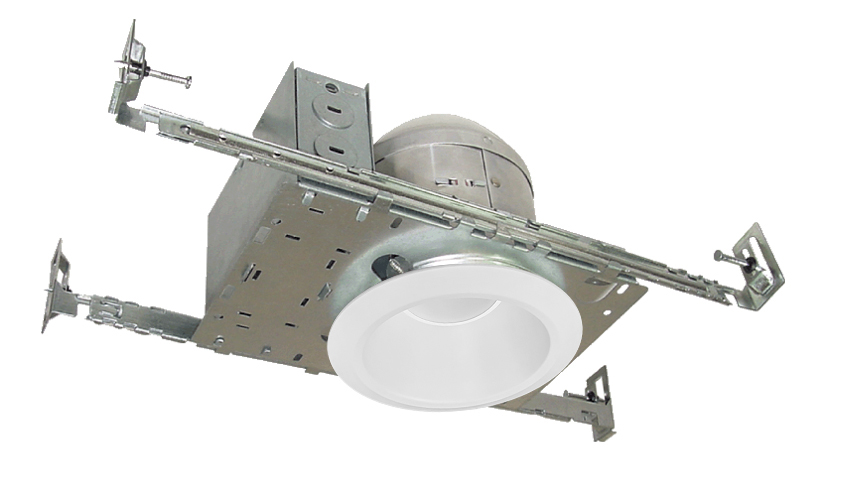

4” LED IC Airtight Frame-In

8215HA Series

Specifications

Item #: 8215HA
Family: 8215
Category: Recessed
Description: 4” LED IC Airtight Frame-In
Design Features
- Connectors: 3 part quick connectors pre-installed in all J Boxes
- Construction: New construction
- Thermal Protection: Protected against misuse of insulation and improper wiring
- IC Rating: IC rated for direct contact with insulation
- J Box: Listed for feed through wiring (4 in-4 out) and five ½” knockouts
- Bar hangers: Pre-installed allowing for position at any point w/in a 24” joist span. Can be turned 90⁰ on plaster frame, & to fit T-bar spine w/out additional clamps for use in drop ceilings.
- Nails: Pre installed captive nails on bar hangers
- Adjusts to accommodate 1″ ceiling thickness
- Voltage: 120V-60Hz
Available LED Modules/Trim Finishes
- 8763WH, CL, OB, BK, BN
- 8769WH, OB, BK, BA
- 8771WH, OB, BN
- 8770CL
- 8722WH
- 8773WH
Options:
- -EM adds Emergency Backup
Warranty
- 5 year limited warranty
Material
- Frame: Steel
Listing
- ETL/UL: cCSAus certified
Meets Washington’s State energy code for restricted airflow
