Home > Product > 2” Round Frame-In LED

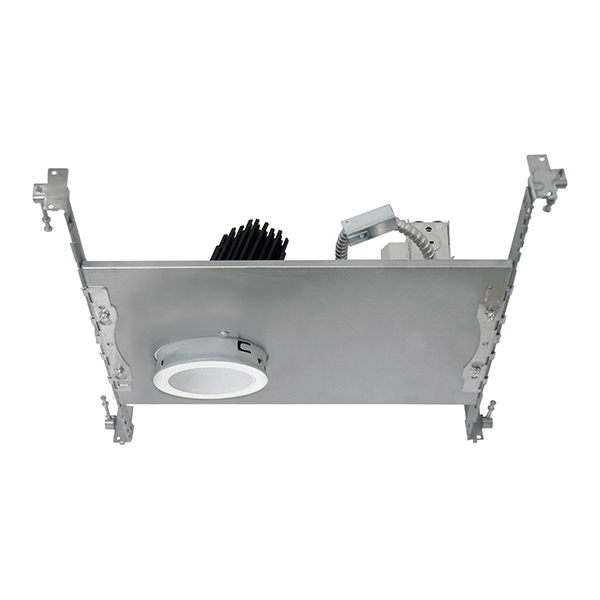

2” Round Frame-In LED

8320H

Download the photo metric sheet for this product here.
Download the specification sheet for this product here.
Download the IES sheet for this product here.
Specifications
    • Family: 8320H
    • Description: 2” Round Frame-In LED
    • Design Features:
      • 120V-277V Universal Voltage
      • High efficiency center beam options
      • Available in 80 CRI
      • Battery Pack Available: -EM
      • 10 | 870lms,  15 | 1200lms or  23 | 1800lms
      • Available in 2700K or 3000K
      • Suitable for use in damp locations
      • Triac and 0-10V dimmable driver
      • Adjustable to position the housing at any point within a 24” joist span or grid section
      • J-Box is listed for through-branch circuit wiring (4in – 4out) and five 1/2” knockouts
      • 3 port quick connectors pre-installed in all J-boxes
      • Adjustable trims may be directional 0-30º tilt and 356º rotational precision adjustment with position lock
      • Interchangeable optics for beam spread of N: 15°, M: 38°, W: 60°
      • Pre-installed bar hangers are designed to fit “T” bar spine without additional clamps for use in drop ceilings
      • 4 captive nails for quick placement
    • Trims: 8861AJ-WH and 8861S-WH
    • 14-15/16” x 5” x 3-3/16” / Aperture: 3-3/16”
    • Warranty
      • 5 year warranty
    • Compliance
      • cCSAus listed for damp locations
