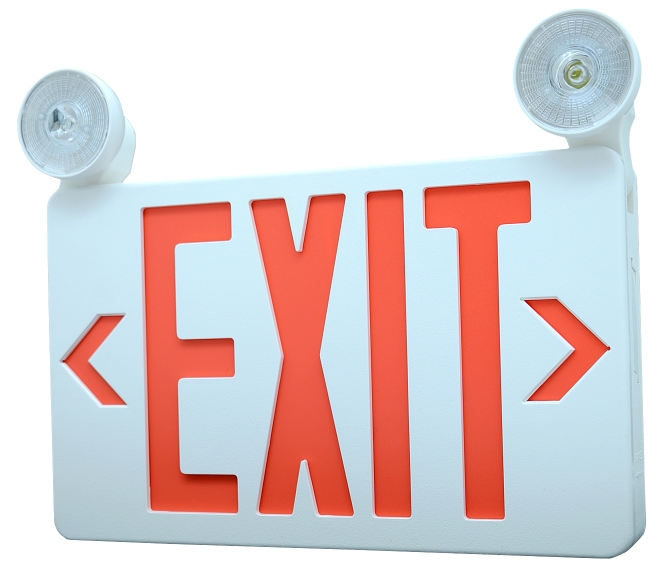

Standard Exit/Emergency Combo
RXEL37 Series
(Acrobat Reader Required)
Specifications
- Category #:
- RXEL37GW
- RXEL37RW
- Product Group: Emergency Exit
- Description: Standard Exit/Emergency Combo
- Finishes available:
- RW= Red with white housing
- GW= Green with white housing
- Design Features
- Mounting: Universal mounting (wall, side and ceiling)
- Faceplates: Includes single or double face high impact thermoplastic faceplate. Includes one blank face
- Universal snap-in & out chevrons meets all state and local UL924 codes
- Operating temp. 10⁰C (50⁰F) to 40⁰C (104⁰F)
- Input voltage/wattage: 120/277V AC input, 60Hz
- Special Features: Complete self-contained. Integral recharging system
- Fully automatic operation. Momentary test switch. Integral recharging system
- Battery (Expected life is 10 years): Contains a Ni Cad rechargeable battery. Protected from deep discharge. Whenever regular AC fails, the internal solid-state transfer switch automatically connects internal battery to run for 90 minutes.
- Lamp (Exit): LED
- Lamp (Emergency): 2x1W LED, 6000K, 150lms
- Material
- Housing material: Thermoplastic housing w/ flame retardant
- Listing
- ETL/UL: UL Damp location listed
In an effort to promote energy efficiency and recognizing the importance of energy conservation, RP Lighting has developed multiple products in each of our lighting and ceiling fan categories that are Energy Star qualified.
