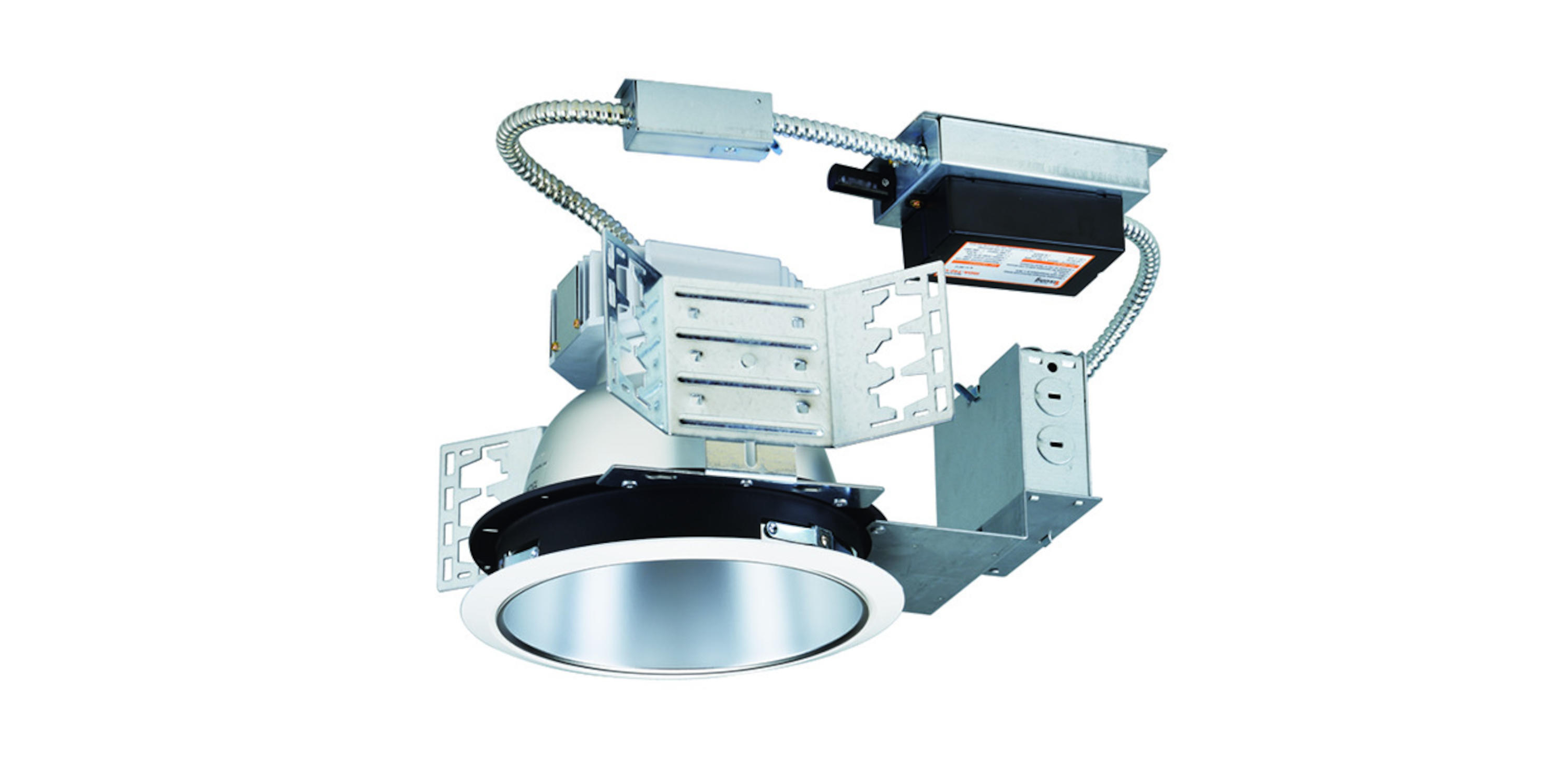

6” LED Architectural Housing



-
- Family: 8124H
- Description: 6” LED Architectural Housing
- Commercial grade LED Architectural Downlight retrofit

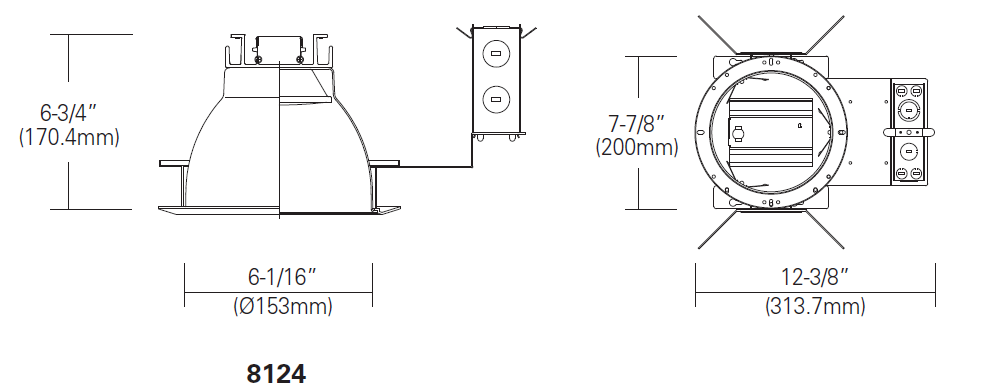

- 6-3/4” height allows for use in 2” x 8” joist construction
- Design Features
• LED Module is an aluminum extruded heat sink designed to facilitate heat dissipation to reduce LED junction temperature for maintaining constant light and color output
• Triac & 0-10V dimming with integral driver
• Lamp life of 50,000 hours - Available Modules/Trim Finishes:
- 8651HZ, 8652WH, 8653WH, 8654WH & 8655WH
- Warranty
• 5 year warranty - Compliance
- ENERGY STAR® Certified Luminaire for 3000K & 4000K Only
- cCSAus Certified
- Optional Features
• Emergency back-up
