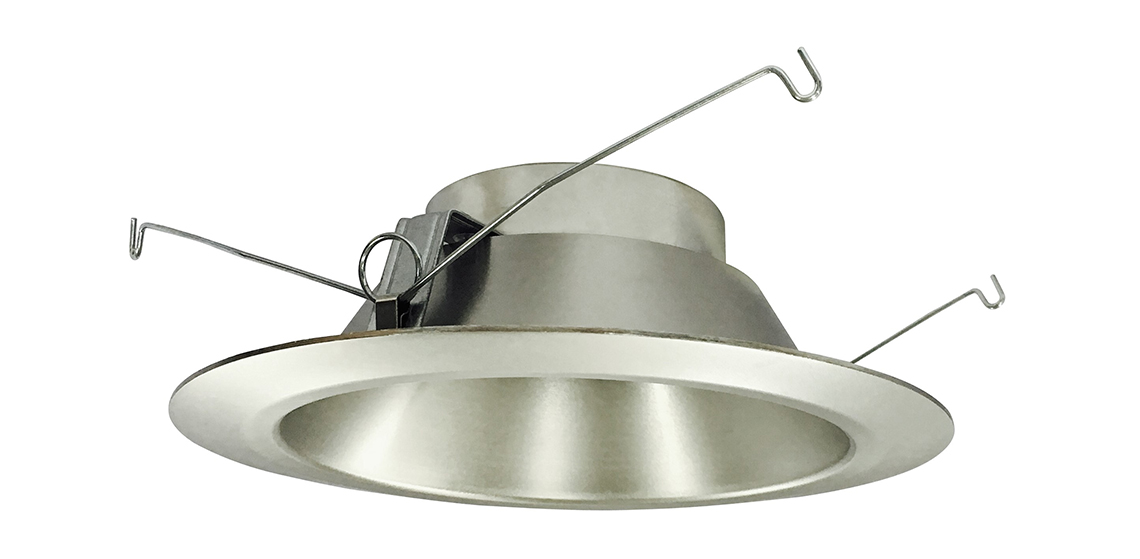

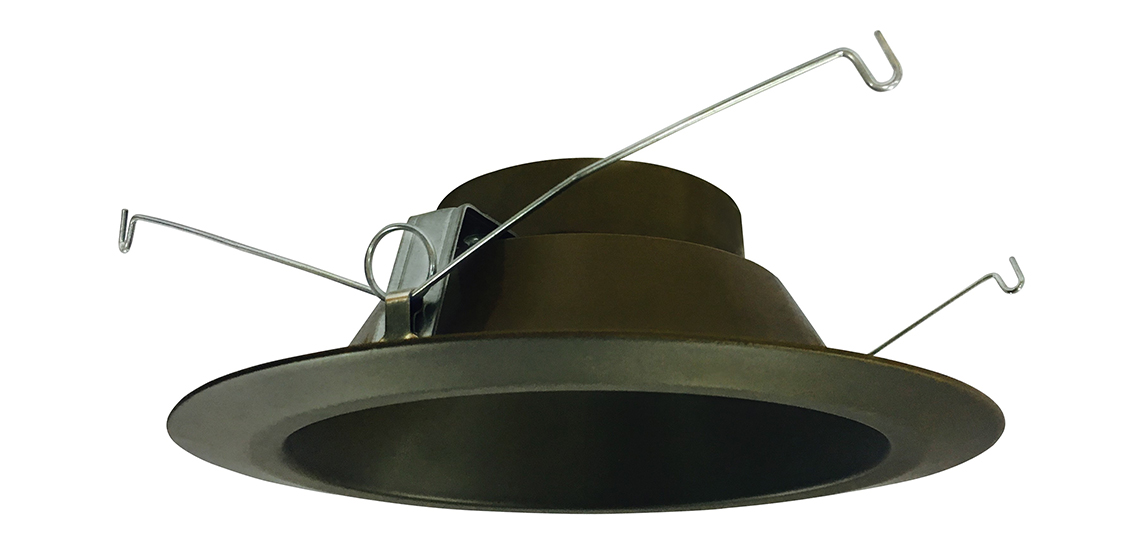

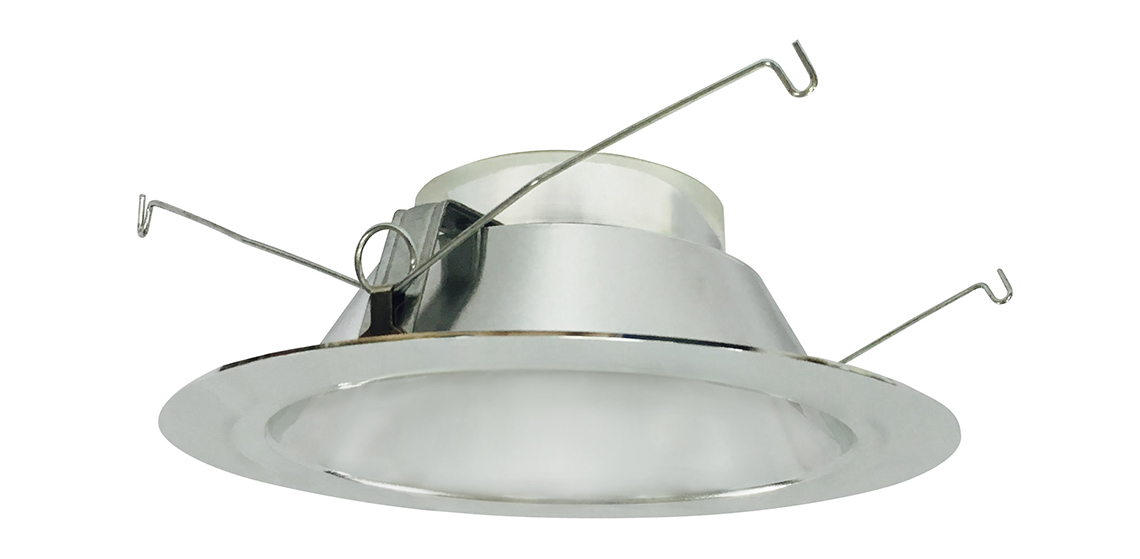

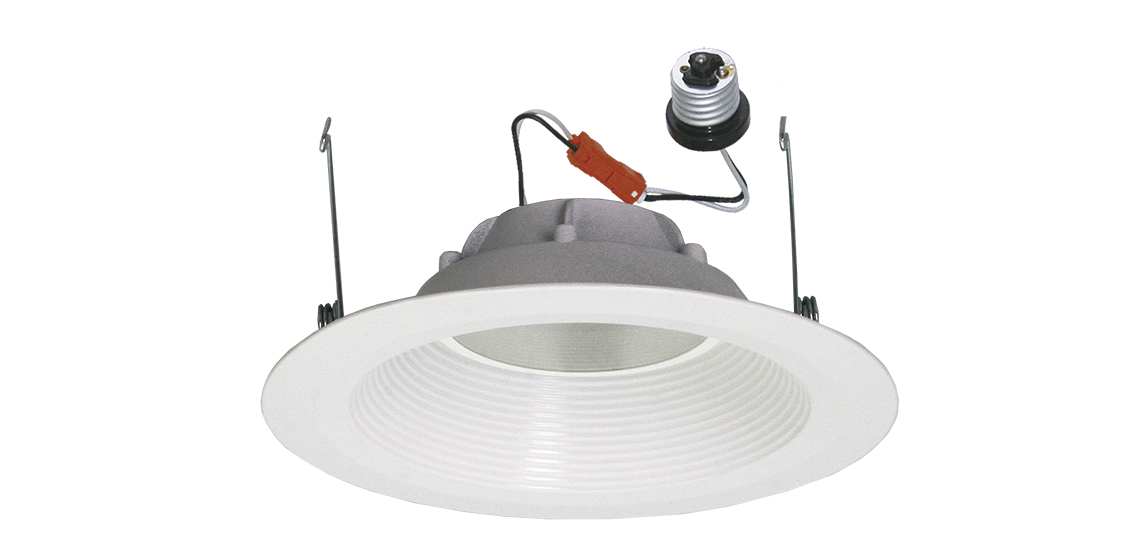

6” LED Recessed Module
8563 Series
(Acrobat Reader Required)
Specifications
- Category #: 8563
- Family: LED
- Product Category: LED Reflector
- Description: 6” LED Reflector
- Available Finishes:
- White
- Black
- Clear
- Oil Rubbed Bronze
- Brushed Nickel
- Design Features
- Dimmable: Yes – 120V only
- CRI: 90
- Color Temperature: 3000K, 4000K
- Lumens: 795
- Wattage: 13
- Voltage: 120V or 277V (specify when ordering)
- Lamp: LED
- Lamp Life: 50,000 hours
- Beam Angle: 92.7°
- Warranty
- 5 year limited warranty
- Dimensions
- Height: 2-5/8”
- Width: 7-1/4”
- Material
- Lens: Polycarbonate Diffused Lens
- Frame: Aluminum
- Listing
- Energy Star: Yes
- ETL/UL: cETLus
- Dry/Wet: Wet location listed
- California 24 Title: Yes
- Compatible Housing: 8115HA, 8115HRA, 8117HA, 8117HRA, 8102HAQ-K, 8102HRA, 8102HAQ-NB-K, 8104HICA & 8104HRICA
In an effort to promote energy efficiency and recognizing the importance of energy conservation, RP Lighting has developed multiple products in each of our lighting and ceiling fan categories that are Energy Star qualified.
